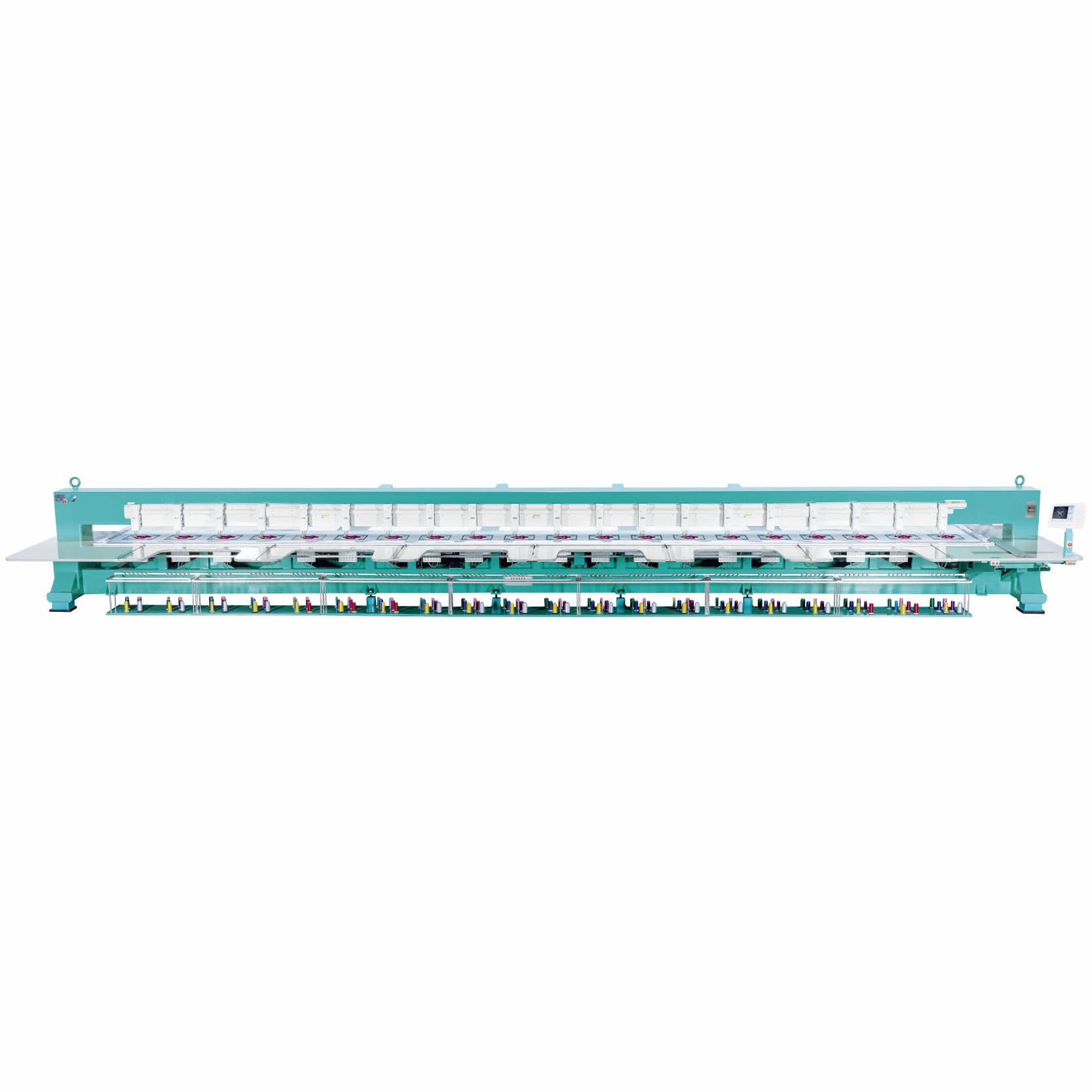

chenille embroidery machine series
Functions： Loop stitch and chain stitch, it is mainly applicable on kids wear, home textile, knitting wear, Curtain, leather etc.
|
MODEL |
HEAD |
NEEDLE |
HEAD INTERVAL |
EMB.SPACE |
MACHINE SIZE |
NET WEIGHT |
|
MJ-624 |
24 |
6 |
400mm |
400x800mm |
10.9x2.05x1.7m |
7200kg |
|
MJ-H624 |
24 |
6 |
400mm |
400x800mm |
10.9x2.05x1.7m |
7300kg |
More model as following:
Head , Needle, embroidery space could be done according to exact need.
Chenille speed has two type, MJ model with normal speed Max 850rpm and MJ-H model with high speed Max 1200rpm.
Computer： DAHAO D19 MODEL
Control panel： 10-inch HD LCD touch screen panel
Main motor： Servo motor
XY motor： Dahao servo motor
Voltage： 220V/380V, 50/60Hz.
Multi-language support, Auto thread trimming，auto thread broken detecting，auto color change，auto start，auto lubricating part，
USB input and output design，suitable for design format DSB、DST etc, Memory capacity: Maximum 800 designs or 100 million stitches.
Automatic air clean, Screw color change or Cam color change, soft mechanic operation and lower noise.
Centralized (or separately) motor hook, centralized (or separately) motor trimming.
Humanized design of computer interface, Direct display of functional icons, Easy to operate。
LED light under the table, easy for operation.
Free two model plastic frame.
Standard accessories tool box 1 set
Machine parts list book and USB file with operate manual.
Aluminum poly bag or Wooden case package.
